As modern electronics become increasingly compact and powerful, BGA precision soldering technology has evolved into an essential skill for repair professionals across the UK. Smartphones, laptops, automotive modules, game consoles, and industrial controllers now heavily rely on BGA (Ball Grid Array) chip architecture.
At Digi4u, we support UK repair engineers and technical businesses by offering reliable BGA rework stations, microscopes, soldering tools, and complete micro-soldering solutions. This guide explores the principles, best practices, and equipment essential for mastering BGA precision soldering.
What Is BGA Precision Soldering Technology?
BGA precision soldering is the controlled process of removing, reballing, and reflowing BGA chips using accurately regulated temperature, advanced alignment systems, and microsoldering skills. Since BGA joints are hidden underneath the chip, precision and technique are crucial.
Why BGA precision soldering matters:
- Ensures long-term reliability
- Prevents board damage
- Reduces cold joints and short circuits
- Supports repair of advanced chips like CPU, GPU, PMIC, and UFS
As microelectronics continue shrinking, the demand for precise BGA work grows rapidly.
Key Tools Required for BGA Precision Soldering
To achieve stable results, technicians must use proper equipment. Here are the core tools:
Professional Rework Station
A high-precision BGA rework machine with:
- Top & bottom heating
- Real-time temperature feedback
- Automatic pick-up and placement
Microscope (10x–40x)
Essential for:
- Ball alignment
- Pad inspection
- Detecting micro-cracks
Hot Air Rework Station

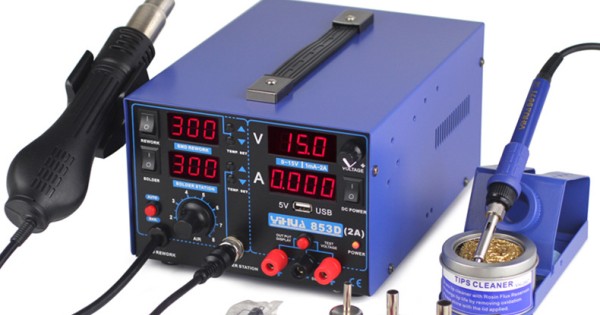

Digital Hot Air Gun Rework Station
Used for localized heating and reflow.
💡 Recommended: Digi4u Professional Hot Air Station Stable airflow, precise temperature control.
BGA Reballing Tools
- Reballing stencils
- Reballing platform
- Solder balls (0.25mm–0.5mm depending on chip)
Flux, Solder Paste, and Cleaning Agents
Helps achieve clean, strong joints.
How BGA Precision Soldering Works (Step-by-Step)
Step 1: Pre-Heating the PCB
To prevent warping and internal board stress.
Step 2: Removing the BGA Chip
Use controlled hot air and bottom heat to melt solder evenly.
Step 3: Cleaning the PCB Pads
Remove old solder and residual flux to ensure a flat, clean surface.
Step 4: Reballing the BGA Chip
Apply new solder balls:
1. Align stencil
2. Spread solder paste
3. Heat gently to form spherical balls
Step 5: Positioning and Reattaching the BGA Chip
Precise alignment is critical.
Use a microscope and rework station to center the chip correctly.
Step 6: Reflow Soldering
Carefully controlled temperatures prevent overheating and pad damage.
Step 7: Final Inspection
Check:
1. Component alignment
2. Solder uniformity
3. Board functionality
Best Practices for BGA Precision Soldering
Maintain Accurate Temperature Control
Too high = pad lifting
Too low = cold joints
Ideal temperature curve:
- Preheat: 150–180°C
- Reflow: 220–245°C
Use the Right Amount of Flux
Avoid over-use, which can cause voids or shorts.
Keep the PCB Stable
Vibration or movement during reflow results in joint failure.
Prioritize Component Protection
Modern chips are sensitive to:
- Static electricity
- Overheating
- Mechanical stress
Regularly Calibrate Equipment
A small deviation in temperature can ruin an entire board.
Common BGA Soldering Problems (and Solutions)
| Problem | Cause | Solution |
| Cold joints | Low heat / poor contact | Adjust heat curve |
| Short circuits | Excess solder | Clean pads completely |
| Chip misalignment | Poor centering | Use digital alignment tools |
| Pad lifting | Overheating | Reduce top heat temperature |
| Intermittent failures | Micro-cracks | Add uniform pressure during cooldown |
Why BGA Precision Soldering Is Critical for Modern Electronics Repair
- Smartphones & Tablets Components such as CPU, UFS, and PMIC all use BGA packaging.
- Laptops & Game Consoles GPUs and CPUs generate significant heat, causing solder joints to endure long-term thermal fatigue.
- Automotive Electronics ECU, TCU, and ADAS systems all require extremely high reliability.
- AI Devices High-speed computing modules demand perfect soldering precision to ensure stable performance.
How BGA Precision Soldering Improves Your Repair Business
- Take on more high-difficulty repair projects
- Significantly increase your repair success rate
- Stay competitive in the 5G, AI, and automotive electronics era
- Make your repair shop more professional and high-end
- Increase your average repair revenue
The core competitiveness of advanced repair services lies in BGA precision soldering capability — the essential skill that defines top-tier repair professionals.
Conclusion
BGA precision soldering technology is no longer optional—it. It is essential for any technician or repair shop aiming to handle modern high-density electronics. With the right skills, tools, and workflow, you can dramatically improve success rates and deliver professional-grade repairs.
As technology continues to shrink and integrate, mastering BGA precision soldering becomes the key to staying competitive in the repair industry.
